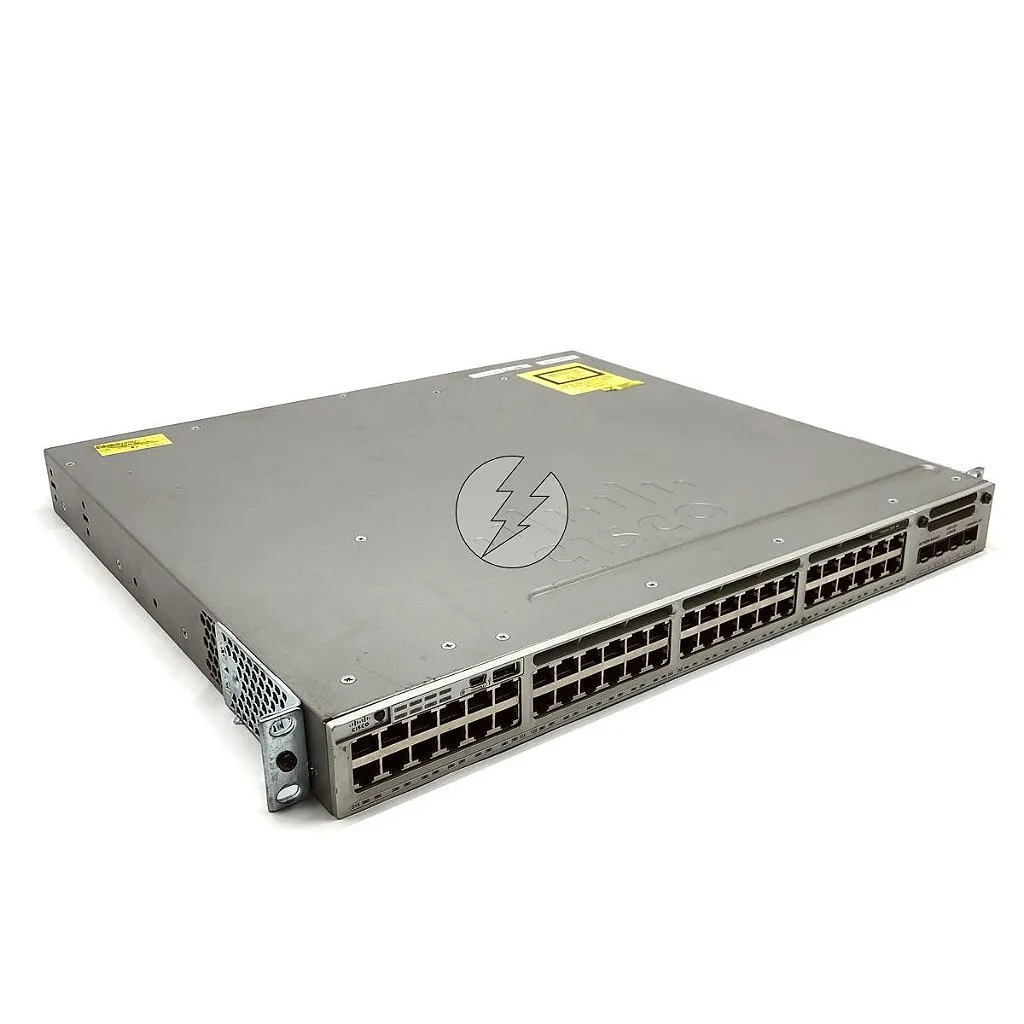

Switch Cisco WS-C3850-48T-E 48x 10/100/1000 + C3850-NM-4-10 Giga
Marca: Cisco
Modelo: WS-C3850-48T-E
Rack-mountable - 1U
Ports: 48 x 10/100/1000
Modulo: C3850-NM-4-10 Gb
MODULO GBIC CISCO CATALYST 3850 4 X 10GE NETWORK MODULE C3850-NM-4-10G
Um receptáculo SFP + suporta módulos Ethernet de 10 Gigabit Ethernet e Gigabit, permitindo que os clientes usem seu investimento em módulos Gigabit Ethernet SFP e atualização para 10 Gigabit Ethernet quando as empresas exigem mudar sem ter que fazer uma atualização abrangente do switch de acesso. Em contrapartida, os recipientes SFP podem ser usado apenas como portas Gigabit Ethernet.
Network management Interface:
● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
● Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power: None
Switching Capacity: 176Gbps
Maximum stacking number: up to 9 switches with same IOS feature set in same series
Stack Bandwidth: 480Gbps
Forwarding Performance: 130.95Mpps
FNF (Flexible NetFlow) entries: 48,000 flows
Maximum VLANs IDs: 4000
MAC Address Table Size: 32K
CPU: Multicore CPU
RAM: 4 G
Flash Memory: 2 G
Wireless:
Number of AP per switch/stack: 100
Number of wireless clients per switch/stack: 2000
Total number of WLANs per switch: 64
Wireless bandwidth per switch: up to 40Gbps
Supported Aironet AP series: 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity:
Console ports: USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s): 1 network module slot and 1 power redundant slot
Network Modules Selection:
● C3850-NM-4-10G: 4 x 10G uplinks network module
Stacking cable:
●STACK-T1-50CM StackWise stacking cable with a 0.5 m length
●STACK-T1-1M StackWise stacking cable with a 1.0 m length
●STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended)
●CAB-SPWR-30CM stack power cable with a 30CM length
●CAB-SPWR-150CM stack power cable with a 150CM length
Power supply: PWR-C1-350WAC
Power supply - redundant - plug-in module
Voltage range (Auto): 100V-240V
Power Consumption of standalone (in Watts): 127.24 (Max)
Miscellaneous:
Width: 17.5 Inches (44.5 cm) - Depth: 17.7 Inches (44.5 Cm) - Height: 1.75 Inches (4.45 cm)
Weight:
17.0 Pounds (7.7Kg)
MTBF in hours: 303,660
Compliant Standards
● IEEE 802.1D Spanning Tree Protoco
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1X-Rev
● IEEE 802.11
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
●IEEE 802.3af and IEEE 802.3at
System software / license:
System software: IOS IP Services
EnergyWise license: ENERGY-MGMT, ENERGY-MGT-100-K9
Access Point Licenses
●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
●LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
