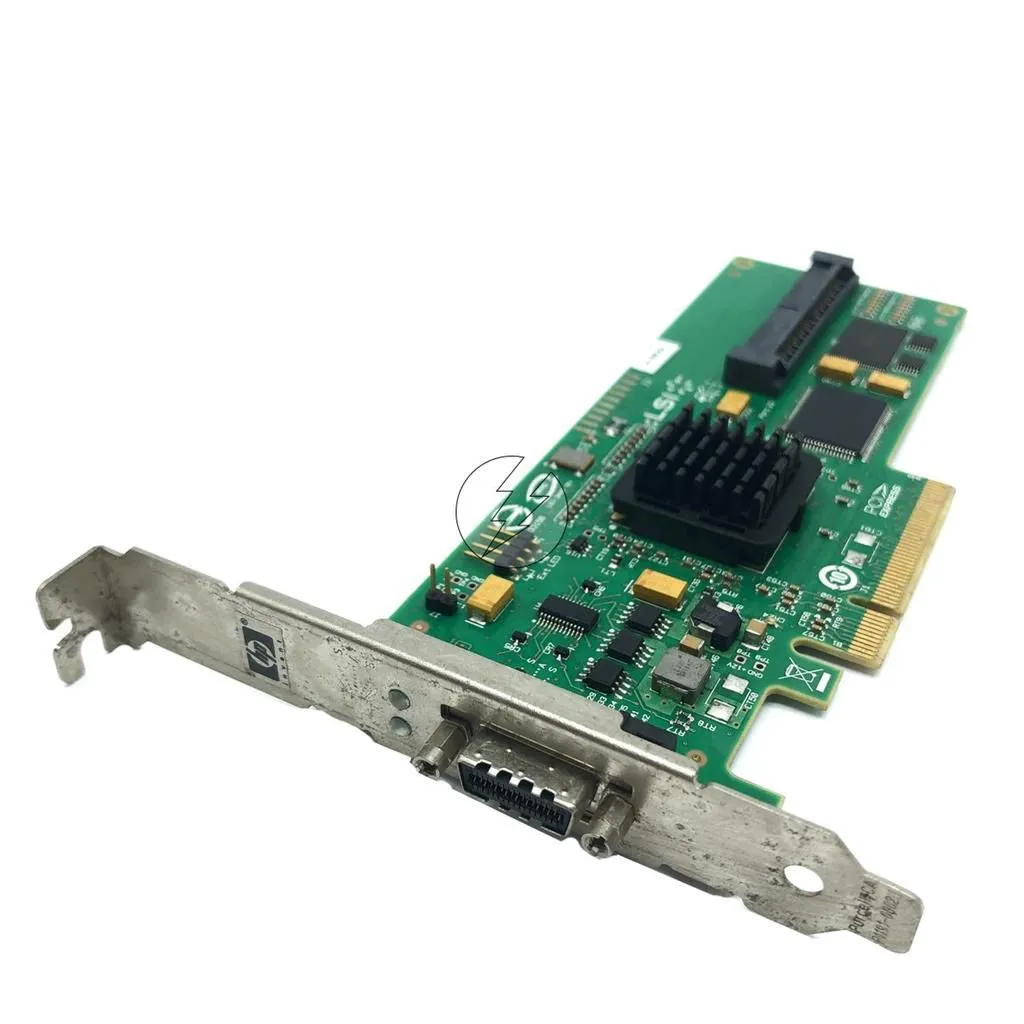

Placa Controladora HP SAS3442E-HP L3-00120-05B 416155-001
# Códigos na peça
- SAS3442E-HP
- L3-00120-05B
- 416155-001
# Itens que serão enviados (verifique nas imagens)
Obs.: Utilizamos embalagens parda
- 01 Placa
# Especificações
- Características de acordo com as fotos do anúncio
- DESCRIPTION :
- MANUFACTURER : HP
- MANUFACTURER PART NUMBER : SAS3442E-HP
- PRODUCT NAME : SC44GE 8-CHANNEL SAS RAID CONTROLLER
- OVERVIEW : THE SC44GE HOST BUS ADAPTER IS IDEAL FOR BASIC RAID (0,1) AND LOW COST CONNECTIVITY TO TAPE AND HDDS. THIS ADAPTER SUPPORTS BOTH 3GB SAS AND 1.5GB SATA DEVICES. PROVIDING UP TO 2.4GB/S MAXIMUM BANDWIDTH, THIS HBA PROVIDES NEARLY FOUR TIMES THE SPEED OF A DUAL CHANNEL U320SCSI ADAPTERS. HP SC44GE HOST BUS ADAPTER HAS BEEN THOROUGHLY TESTED AND INTEGRATED INTO MANY OF THE HP PROLIANT SERVERS.
- SPECIFICATIONS :
- KEY FEATURES :
• SAS TECHNOLOGY DELIVERS HIGH PERFORMANCE AND DATA BANDWIDTH UP TO 3 GBPS PER PHYSICAL LINK.
• MIX-AND-MATCH SAS AND SATA HARD DRIVES, LETS YOU DEPLOY DRIVE TECHNOLOGY, AS NEEDED, TO FIT YOUR COMPUTING ENVIRONMENT.
• SUPPORT FOR SAS TAPE PRODUCTS.
• PCI EXPRESS (PCIE) X8 (2.5 GB/S BANDWIDTH)
• PCI EXPRESS X8 CAPABLE
- PERFORMANCE :
- THE HP HIGH PERFORMANCE ARCHITECTURE SETS NEW BOUNDARIES FOR INDUSTRY PERFORMANCE EXPECTATIONS.
• 3 GBPS SAS (BANDWIDTH PER PHYSICAL LINK)
• 24 GBPS TOTAL AVAILABLE BANDWIDTH (8 PHYSICAL LINKS X 3GBPS)
• PCIE X8 (2.5 GB/S BANDWIDTH)
- HP INTEGRATION :
- FULLY INTEGRATED AND TESTED WITH MOST PROLIANT SERVERS AND MANAGEMENT SOFTWARE.
- CAPACITY :
- GIVEN THE INCREASING NEED FOR HIGH PERFORMANCE AND RAPID CAPACITY EXPANSION, THE SC44GE SAS HBA WITH RAID OFFERS:
• EIGHT 3 GBPS SAS PHYSICAL LINKS SUPPORTING UP TO TWO SIMULTANEOUS X4 WIDE SAS PORTS
• UP TO 3.0 TB OF STORAGE PER PCI SLOT
- CHANNEL QTY : 8
- MAX STORAGE DEVICES QTY : 29
- RAID LEVEL: RAID 0, RAID 1
- SYSTEM REQUIREMENTS : SUSE LINUX ENTERPRISE SERVER, MICROSOFT WINDOWS SERVER 2003 ENTERPRISE EDITION, MICROSOFT WINDOWS SERVER 2003 STANDARD EDITION, UNIXWARE 7.1.3, MICROSOFT WINDOWS SMALL BUSINESS SERVER 2003, RED HAT ENTERPRISE LINUX, UNIXWARE 7.1.4, MICROSOFT WINDOWS SERVER 2003 STANDARD X64 EDITION, MICROSOFT WINDOWS SERVER 2003 ENTERPRISE X64 EDITION, SCO OPENSERVER 6
# Garantias
- Emitimos NF
- DEVOLUÇÃO gratuita por 7 dias
- GARANTIA completa de 6 meses (3 da garantia legal + 3 do vendedor)
- Fotos REAIS do produto
